Insulation Resistance Testers — 5 kV

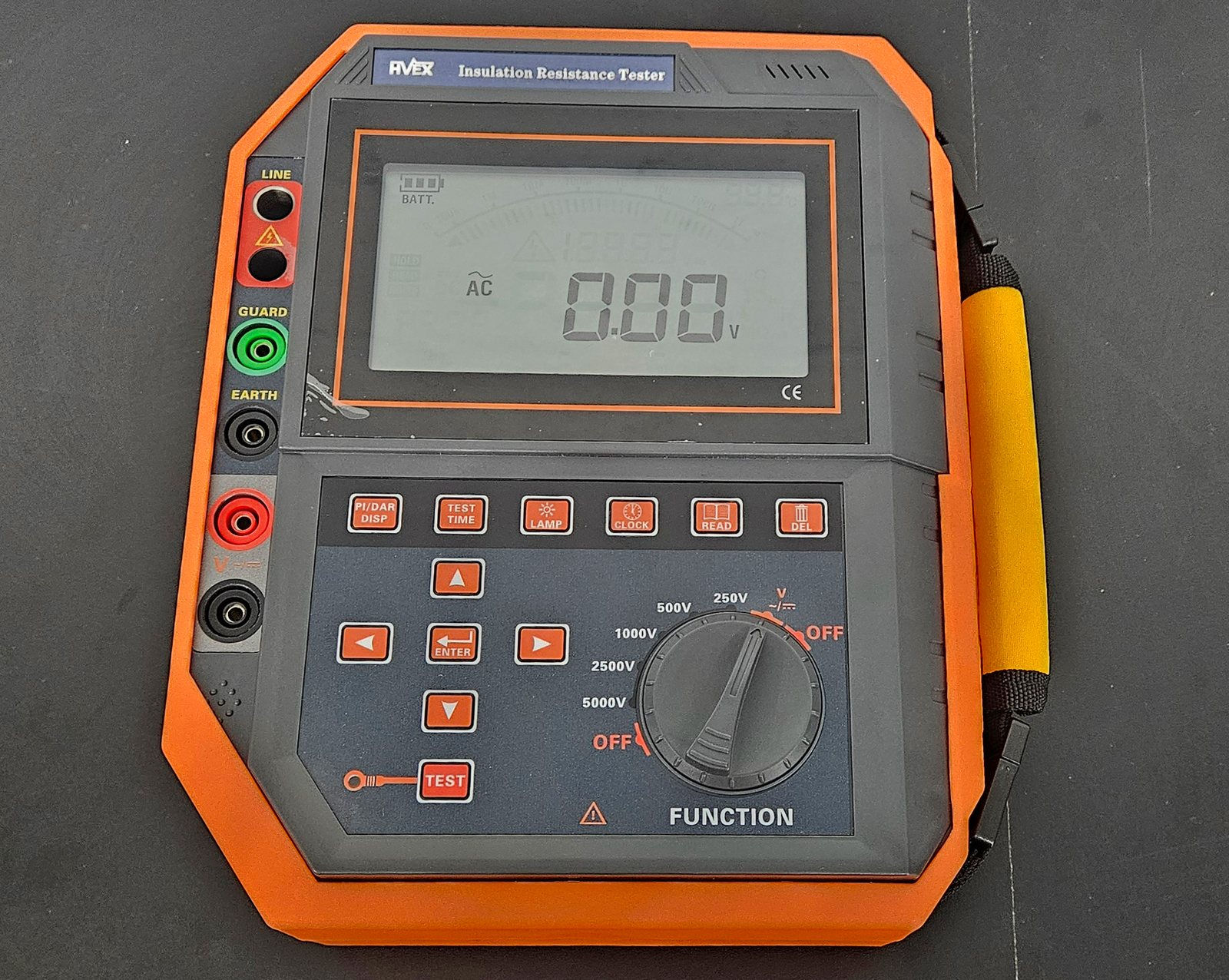

Portable insulation-resistance measurement with test voltages up to 5 kV DC. Atlas Energy supplies the HVEX megohmmeter for commissioning and maintenance of motors, generators, power cables, circuit breakers, transformers, and industrial electrical equipment. The tester applies a selected DC voltage, measures the resulting current, and calculates insulation resistance for display and recording.
Test voltage and measurement range
250 V DC: 0.01 MΩ to 250 GΩ.
500 V DC: 0.01 MΩ to 500 GΩ.
1,000 V DC: 0.01 MΩ to 1 TΩ.
2,500 V DC: 0.01 MΩ to 2.5 TΩ.
5,000 V DC: 0.01 MΩ to 5 TΩ.
Resistance resolution: 0.01 MΩ.
Published short-circuit current: ≥5 mA.
Measurement accuracy depends on the selected voltage and resistance range. At 5 kV, the datasheet specifies ±3% ±5 digits from 0.01 MΩ to 50 GΩ, and ±15% ±5 digits from 50 GΩ to 5 TΩ. Select the test voltage and acceptance criteria for the insulation system under evaluation.
Field operation and data handling
Rechargeable 14.8 V, 2,200 mAh lithium battery.
Approximate charging time: four hours.
Digital display and automatic resistance calculation.
USB interface for transferring stored results to a computer for saving or printing.
Voltage measurement ranges: 0.01–750 V AC and 0.01–1,000 V DC, with published accuracy of ±2% ±3 digits.
Operating conditions
Operating temperature: −10 to +40 °C (14–104 °F).
Operating humidity: below 80%.
Storage temperature: −20 to +60 °C (−4 to +140 °F).
HVEX documentation lists IEC 61010-1, CAT III 300 V / CAT IV 150 V, pollution degree 2, and IEC 61010-031. Voltage measurement ranges do not change these installation-category ratings.
Applications
Use insulation-resistance measurements to support routine maintenance, commissioning, and comparison of insulation condition over time. Test results can help identify deterioration associated with moisture, contamination, thermal stress, and aging. Contact Atlas Energy to confirm the HVEX configuration, test leads, charger, and required test procedure for your application.
Technical documentation
Download HVEX 5 kV Insulation Resistance Tester datasheet (English, PDF)
